Ladder Cable Trays
Ladder type of cable trays are used for distributing heavy duty cables, This may be economical to perforated cable trays with desirable features. The loading capacity is more , the strength of the cable trays can be tuned as per requirements.
As perforated trays ladder trays also are fabricated from M.S sheets with different finishing and PreGalvanized sheets for direct & immediate installation. The best advantage of ladder type cable trays are that moisture can’t accumulate on them.

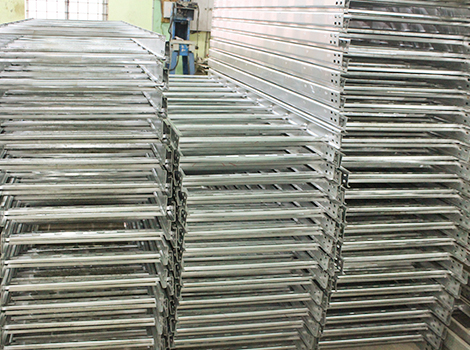

Ladder Straight Cable Trays
- Strength: Light, Medium & Heavy Duty
- Raw Material: Mild Steel , GP Coil
- Width(W): 50 mm – 1200 mm
- Side Channel Height: 50 mm - 150 mm
- Run Width: 30 mm - 50 mm
- Run C to C: 250 mm / 300 mm
- Thickness: 1.6 mm / 2.0 mm / 2.5 mm
- Length: 2500 mm / 3000 mm
- Finish - Mild Steel: Hot Dip Galvanizing as per IS 2629 / 2633 / 4759, Painted & Powder Coated

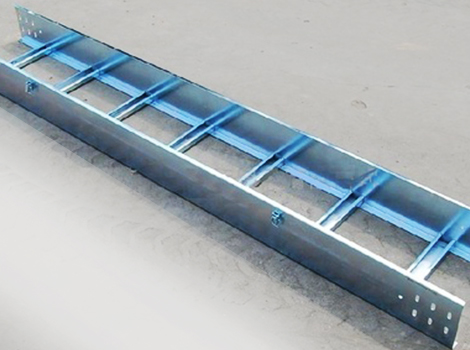

Ladder Trays Powder Coated
- Strength: Light, Medium & Heavy Duty
- Raw Material: Mild Steel , GP Coil
- Width(W): 50 mm – 1200 mm
- Side Channel Height: 50 mm - 150 mm
- Run Width: 30 mm - 50 mm
- Run C to C: 250 mm / 300 mm
- Thickness: 1.6 mm / 2.0 mm / 2.5 mm
- Length: 2500 mm / 3000 mm
- Finish - Mild Steel: Hot Dip Galvanizing as per IS 2629 / 2633 / 4759, Painted & Powder Coated

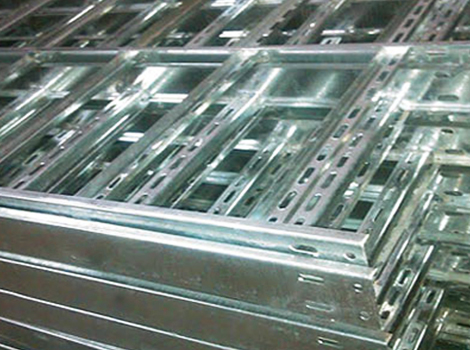

Ladder Hot Dip Trays
- Strength: Light, Medium & Heavy Duty
- Raw Material: Mild Steel , GP Coil
- Width(W): 50 mm – 1200 mm
- Side Channel Height: 50 mm - 150 mm
- Run Width: 30 mm - 50 mm
- Run Height: 10 mm - 20 mm
- Run C to C: 250 mm / 300 mm
- Thickness: 1.6 mm / 2.0 mm / 2.5 mm
- Length: 2500 mm / 3000 mm
- Finish - Mild Steel: Hot Dip Galvanizing as per IS 2629 / 2633 / 4759, Painted & Powder Coated

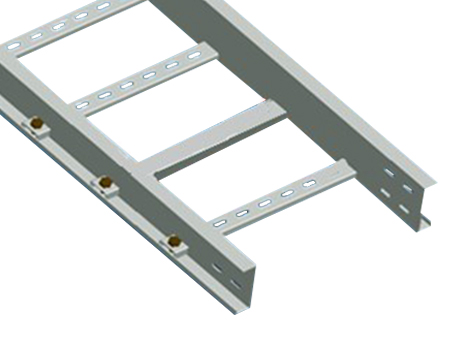

Ladder Bolted Type
- Strength: Light, Medium & Heavy Duty
- Raw Material: Mild Steel , GP Coil
- Width(W): 50 mm – 1200 mm
- Side Channel Height: 50 mm - 150 mm
- Run Width: 30 mm - 50 mm
- Run Height: 10 mm - 20 mm
- Run C to C: 250 mm / 300 mm
- Thickness: 1.6 mm / 2.0 mm / 2.5 mm
- Length: 2500 mm / 3000 mm
- Finish - Mild Steel: Hot Dip Galvanizing as per IS 2629 / 2633 / 4759, Painted & Powder Coated
